The Hidden Dangers of Using Poor-Quality Three-Dimensional Nailing Plates in Construction

In the construction industry, attention to detail isn’t for aesthetics or design integrity alone; it’s also an integral part of safety, durability, and long-term performance. Among the many components that play a critical role in structural connections, three-dimensional nailing plates are often underestimated. However, the consequences of using substandard or poorly engineered nailing plates and joist hangers can be severe, particularly under the demanding conditions of UK and European climates.

This post explores the risks associated with using bad quality nailing plates and what buyers, importers, architects, construction workers, and retailers should know to avoid costly and dangerous outcomes.

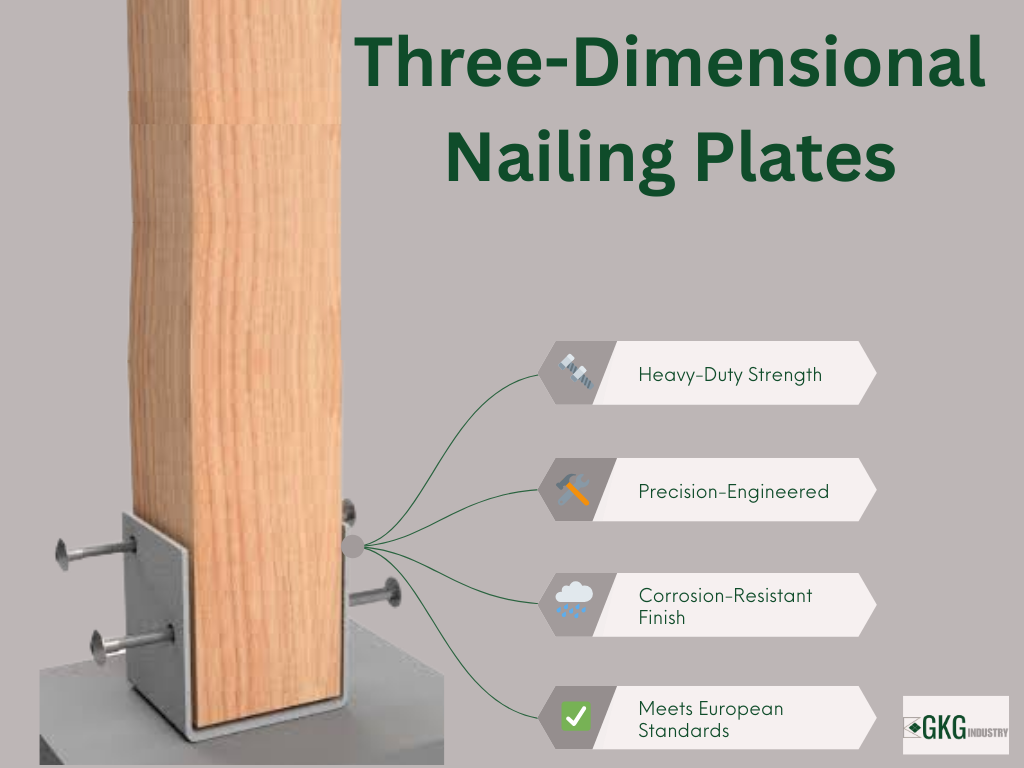

What Are Three-Dimensional Nailing Plates?

Three-dimensional nailing plates and joist hangers are structural metal connectors used to reinforce joints between wooden or light steel members. These plates, whether angled, flanged, mini, flush-mount, heavy-duty, or I-beam shaped, ensure the mechanical stability of frames, trusses, posts, and beams in load-bearing structures. Their role is especially vital in applications like roof trusses, timber framing, modular builds, and prefabricated housing systems.

Genuine, high-performance plates and timber hangers must pass stringent requirements defined by European Assessment Documents (EADs), such as EAD 130186-00-0603. Key essential characteristics for performance include:

• Joint strength (2.2.1) — Must support expected loads without deformation


• Joint stiffness — Maintains structural integrity under pressure


• Joint ductility — Prevents brittle failure during stress events


• Resistance to seismic actions (2.2.2) — Important for earthquake zones in Europe


• Resistance to corrosion and deterioration (2.2.3) — Especially crucial for humid or coastal climates


• Reaction and resistance to fire (2.2.4 and 2.2.5) — Affects safety ratings and compliance



Poor-quality products usually fail to meet these specifications, compromising the safety and durability of the structure.

Consequences of Using Inferior Nailing Plates

1. Structural Failures

Weak or underspecified plates can’t carry design loads, leading to joint failures. In worst-case scenarios, this results in collapsed walls, roofs, or entire sections of a building, posing a grave risk to both workers and occupants.

2. Compliance and Legal Issues

In the UK and EU, construction materials must comply with EN standards, and non-compliant plates may trigger fines, rework mandates, or even project shutdowns. For importers, customs can seize non-compliant shipments, causing delays and financial losses.

3. Corrosion in Harsh Climates

Europe’s diverse climate, with prolonged wet seasons, frost, and coastal humidity, can severely degrade poor coatings and metals. Non-galvanized or low-grade plates may rust within months, leading to progressive joint failure.

Choosing hot-dip galvanized or stainless-steel plates, such as those used in GKG Industries’ Post Supports, ensures long-term resistance to environmental stress.

4. Fire Hazards

Substandard materials may not provide the required fire resistance, particularly in housing applications. Approved plates must meet fire performance classes per EAD 130186, supporting both fire reaction and resistance.

5. Compromised Project Reputation

Architects and developers who specify or use poor-quality components risk damaging their brand reputation. Structural failures or maintenance complaints can have long-term impacts on client trust and future business.

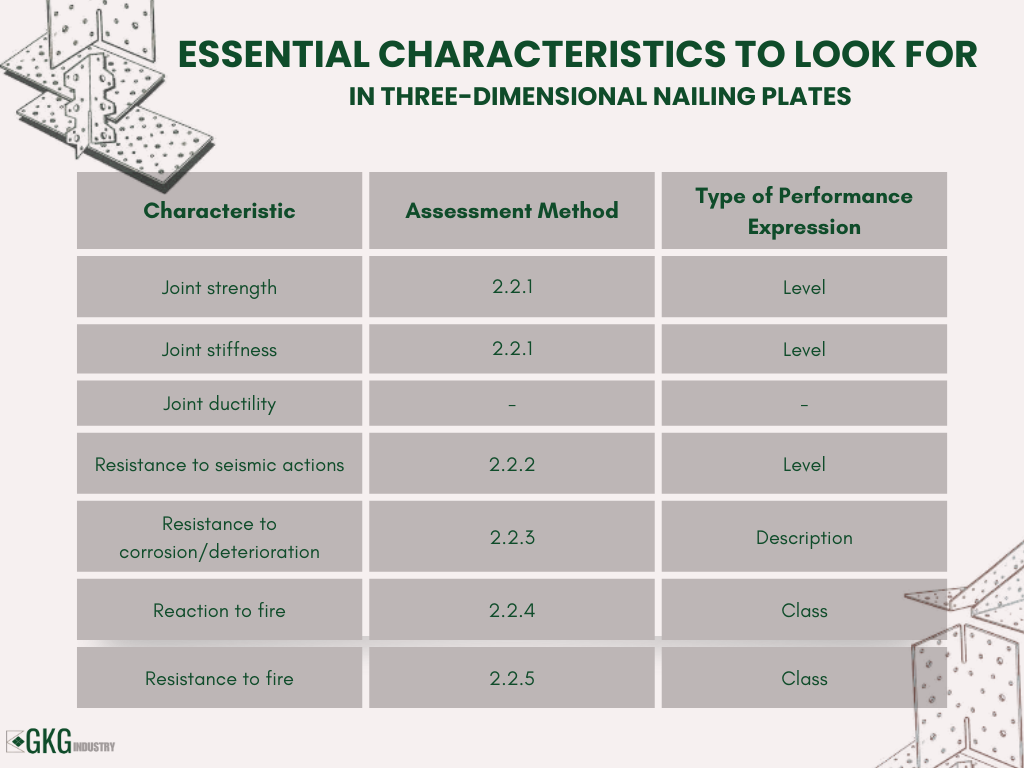

Essential Characteristics to Look For (as per EAD 130186-00-0603)

Here are the essential criteria as outlined in the European Assessment Document for assessing product quality and safety in structural connectors:



What This Means for Buyers

Joint Strength & Stiffness

Ensure plates have been tested under EN standards and deliver consistent strength under axial, shear, and torsional forces.

Corrosion Resistance

Look for hot-dip galvanized coatings (min. 70 microns) or stainless steel for marine or coastal applications.

Fire Resistance

Verify that products meet Euroclass ratings if used in residential or commercial buildings.

Seismic Resistance

Especially important for buyers operating in parts of Europe prone to earthquakes.

What Buyers and Importers Should Look For

• Always request mill test certificates (MTCs) and compliance documents


• Confirm products meet EAD/EN/CE certifications


• Insist on corrosion protection, preferably hot-dip galvanization


• Choose manufacturers with export experience and a proven reputation


GKG Industries is a third-generation, family-run company with decades of experience in manufacturing and exporting structural components. Our products are designed for compliance, strength, and long-term durability in European markets.

If you’re sourcing related construction materials like TMT rebars or adjustable post supports, consolidating your procurement with a reliable supplier ensures consistency in quality and documentation.

Also Read:

• Explore Our TMT Rebars


• Adjustable Post Supports for Landscaping and Construction


• Structural Steel Channels: High Strength and Versatility



Whether you’re a contractor working on-site, a retailer managing inventory, or a procurement head sourcing globally, the risks of using bad quality three-dimensional nailing plates and joist hangers are simply too high. Prioritize quality, compliance, and proven manufacturers.

GKG Industries offers end-to-end support and globally compliant metal connectors tailored for Europe’s toughest construction demands.

Write to us at sales@gkgindustry.com to learn more or get in touch for a customized consultation.
